#12747 Smad2/3 Antibody Sampler Kit

CSTコード 包装
希望納入価格 (円)
国内在庫 i
2019年1月17日15時10分 現在
ご登録代理店情報 i
カスタマー情報にご登録いただいた代理店を表示しています。
ご登録代理店の変更はこちら
#12747T1 Kit92,000
ログインすると国内在庫状況がご確認いただけます。

Smad2/3 製品一覧

12747 の推奨プロトコール i

最適な結果を得るために:Cell Signaling Technology (CST) 社は、各製品の推奨プロトコールを使用することを強くお薦めいたします。
推奨プロトコールはCST社内試験の徹底的なバリデーションに基づいて作成されておりますので、正確かつ再現性の高い結果が得られます。

注:各製品に最適化されたプロトコールをリンクしています。


キット内容 容量 用途 種交差性 ホモロジー† 検出分子量 アイソタイプ
Phospho-Smad2 (Ser465/467) (138D4) Rabbit mAb #3108 20 µl WB H, M, R, Mi 60 Rabbit IgG
Smad2 (D43B4) XP® Rabbit mAb #5339 20 µl WB, IP, IF-IC, F, ChIP H, M, R, Mk 60 Rabbit IgG
Smad2/3 (D7G7) XP® Rabbit mAb #8685 20 µl WB, IP, IF-IC, F, ChIP, ChIP-seq H, M, R, Mk 52, 60 Rabbit IgG
Phospho-Smad3 (Ser423/425) (C25A9) Rabbit mAb #9520 20 µl WB, IP, ChIP H, M, R Mk, X, Z, B 52 Rabbit IgG
Smad3 (C67H9) Rabbit mAb #9523 20 µl WB, IP, IF-IC, F, ChIP, ChIP-seq H, M, R, Mk X, Z, B 52 Rabbit IgG
Smad4 (D3M6U) Rabbit mAb #38454 20 µl WB, IP, ChIP, ChIP-seq H, M, R, Mk Dg, GP, Hr 70 Rabbit IgG
Anti-rabbit IgG, HRP-linked Antibody #7074 100 µl WB Goat

†Species predicted to react based on 100% sequence homology.

Applications Key: W=Western Blotting, IP=Immunoprecipitation, IF-IC=Immunofluorescence (Immunocytochemistry), F=Flow Cytometry, ChIP=Chromatin IP, ChIP-seq=Chromatin IP-seq
Reactivity Key: H=Human, M=Mouse, R=Rat, Mi=Mink, Mk=Monkey

貯法
-20℃
社内データ

Western Blotting

Western Blotting

After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.

Western Blotting

Western Blotting

Western blot analysis of extracts from untreated or TGF-beta treated HeLa and NIH/3T3 cells, using Phospho-Smad2 (Ser465/467) (138D4) Rabbit mAb (upper), or Smad2 Antibody #3102 (lower).

Western Blotting

Western Blotting

Western blot analysis of extracts from HT1080 (human), C2C12 (mouse) and B35 (rat) using Smad3 (C67H9) Rabbit mAb.


Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Smad2 (D43B4) XP® Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa and ACHN cells using Smad2/3 (D7G7) XP® Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Smad4 (D3M6U) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower). HT-29 and COLO 205 are Smad4-null mutant cell lines, confirming specificity of the antibody.


Western Blotting

Western Blotting

Western blot analysis of extracts from HT-1080, C2C12, or KNRK cells, untreated (-) or treated with TGF-β (10 ng/ml, 30 min; +), using Phospho-Smad3 (Ser423/425) (C25A9) Rabbit mAb (upper) or total Smad3 (C67H9) Rabbit mAb #9523 (lower).

Chromatin IP-seq

Chromatin IP-seq

Chromatin immunoprecipitations were performed with cross-linked chromatin from HaCaT cells treated with hTGF-β3 #8425 (7 ng/ml, 1 hr) and Smad2/3 (D7G7) XP® Rabbit mAb, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® #56795. The figure shows binding across ID1, a known target gene of Smad2/3 (see additional figure containing ChIP-qPCR data). For additional ChIP-seq tracks, please download the product data sheet.

Chromatin IP-seq

Chromatin IP-seq

Chromatin immunoprecipitations were performed with cross-linked chromatin from HaCaT cells treated with TGF-β1 #8915 (7 ng/mL, 1 hr) and Smad4 (D3M6U) Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® #56795. The figure shows binding across ID1, a known target gene of Smad4 (see additional figure containing ChIP-qPCR data). For additional ChIP-seq tracks, please download the product data sheet.


Chromatin IP-seq

Chromatin IP-seq

Chromatin immunoprecipitations were performed with cross-linked chromatin from HaCaT cells treated with Human TGF-β3 #3706 (7 ng/ml) for 1 h and Smad3 (C67H9) Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® #56795. The figure shows binding across CDKN1A, a known target gene of Smad3 (see additional figure containing ChIP-qPCR data). For additional ChIP-seq tracks, please download the product data sheet.

Western Blotting

Western Blotting

Western blot analysis of extracts from HT1080 cells, treated with TGF-β1, TGFR inhibitor SB-431542 or BMP-2, using Phospho-Smad3 (Ser423/425) (C25A9) Rabbit mAb #9520 (upper) or total Smad3 (C67H9) Rabbit mAb #9523 (lower).

Chromatin IP

Chromatin IP

Chromatin immunoprecipitations were performed with cross-linked chromatin from HaCaT cells treated with Human TGF-β3 #3706 (7 ng/ml) for 1 h and either Smad3 (C67H9) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human CDKN1A Intron 1 Primers #4669, SimpleChIP® Human ID1 Promoter Primers #5139, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.


Chromatin IP

Chromatin IP

Chromatin immunoprecipitations were performed with cross-linked chromatin from HaCaT cells treated with Human TGF-β3 #3706 (7 ng/ml) for 1 h and either Phospho-Smad3 (Ser423/425) (C25A9) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human CDKN1A Intron 1 Primers #4669, SimpleChIP® Human ID1 Promoter Primers #5139, human c-Myc intron 1 primers, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of HeLa cells using Smad2 (D43B4) XP® Rabbit mAb (blue) compared to a nonspecific negative control antibody (red).

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of HeLa cells using Smad2/3 (D7G7) XP® Rabbit mAb (blue) compared to Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (red).


Chromatin IP

Chromatin IP

Chromatin immunoprecipitations were performed with cross-linked chromatin from HaCaT cells treated with hTGF-β3 #8425 (7 ng/ml, 1 hr) and either Smad2/3 (D7G7) XP® Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human CDKN1A Intron 1 Primers #4669, SimpleChIP® Human ID1 Promoter Primers #5139, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.

IP

IP

Immunoprecipitation of Smad4 protein from HCT 116 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Smad4 (D3M6U) Rabbit mAb. Western blot analysis was performed using Smad4 (D3M6U) Rabbit mAb.

Chromatin IP

Chromatin IP

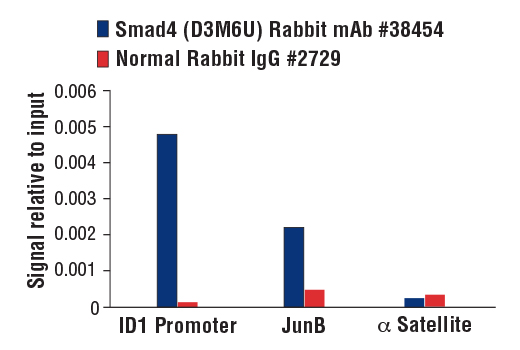

Chromatin immunoprecipitations were performed with cross-linked chromatin from HaCaT cells treated with TGF-β1 #8915 (7 ng/mL, 1 hr) and either Smad4 (D3M6U) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human ID1 Promoter Primers #5139, human JunB promoter primers, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin (equivalent to one).


Flow Cytometry

Flow Cytometry

Flow cytometric analysis of HT-1080 cells using Smad3 (C67H9) Rabbit mAb #9523 (blue) compared to a nonspecific negative control antibody (red).

IF-IC

IF-IC

Confocal immunofluorescent analysis of NIH/3T3 cells, serum-starved (left) or treated with hTGF-β3 #8425 (right), using Smad2 (D43B4) XP® Rabbit mAb (green). Actin filaments have been labeled with DY-554 phalloidin (red).

IF-IC

IF-IC

Confocal immunofluorescent analysis of HeLa cells, serum starved (left), treated with hTGF-β3 #8425 (100 ng/ml, 30 min, center), or treated with hTGF-β3 and SB43152 (10 ug/mL, 1 hr, right), using Smad2/3 (D7G7) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red).


IF-IC

IF-IC

Confocal immunofluorescent analysis of HT1080 cells, untreated (left) or TGFβ-treated (right), using Smad3 (C67H9) Rabbit mAb (green). Actin filaments have been labeled with Alexa Fluor® 555 phalloidin (red).

Chromatin IP

Chromatin IP

Chromatin immunoprecipitations were performed with cross-linked chromatin from HaCaT cells treated with Human TGF-β3 #8425 (7 ng/ml) for 1 h and either Smad2 (D43B4) XP® Rabbit mAb #5339 or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human CDKN1A Intron 1 Primers #4669, SimpleChIP® Human ID1 Promoter Primers #5139, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.

バックグラウンド

Transforming growth factor-β (TGF-β) superfamily signaling plays a critical role in the regulation of cell growth, differentiation, and development in a wide range of biological systems. In general, signaling is initiated with ligand-induced oligomerization of serine/ threonine receptor kinases and phosphorylation of the cytoplasmic signaling molecules Smad2 and Smad3 for the TGF-β/activin pathway, or Smad1/5/8 for the bone morphogenetic protein (BMP) pathway. Carboxy-terminal phosphorylation of Smad proteins by activated receptors results in their partnering with the common signaling transducer Smad4, and translocation to the nucleus. Activated Smad proteins regulate diverse biological effects by partnering with transcription factors resulting in cell-state specific modulation of transcription (1-4).

使用例
製品をご使用いただいて研究を発表されましたら、ぜひお知らせください

関連製品
12001   PathScan® Phospho-Smad2 (Ser465/467)/Smad3 (Ser423/425) Sandwich ELISA Kit
12052   Smad2/3 Control Cell Extracts
12470   Smad2/3 (D7G7) XP® Rabbit mAb (Biotinylated)
3103   Smad2 (L16D3) Mouse mAb
5231   Mouse Transforming Growth Factor β1 (mTGF-β1)
8915   Human Transforming Growth Factor β1 (hTGF-β1)

Illumina is a registered trademark of Illumina, Inc.
Tween is a registered trademark of ICI Americas, Inc.
XP is a registered trademark of Cell Signaling Technology, Inc.
SimpleChIP is a registered trademark of Cell Signaling Technology, Inc.
Alexa Fluor is a registered trademark of Life Technologies Corporation.
LumiGLO is a registered trademark of Kirkegaard & Perry Laboratories.
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.
