#19848 Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit


CSTコード 包装
希望納入価格 (円)
国内在庫 i
2019年1月17日15時10分 現在
ご登録代理店情報 i
カスタマー情報にご登録いただいた代理店を表示しています。
ご登録代理店の変更はこちら
#19848T1 Kit92,000
ログインすると国内在庫状況がご確認いただけます。
19848 の推奨プロトコール i

最適な結果を得るために:Cell Signaling Technology (CST) 社は、各製品の推奨プロトコールを使用することを強くお薦めいたします。
推奨プロトコールはCST社内試験の徹底的なバリデーションに基づいて作成されておりますので、正確かつ再現性の高い結果が得られます。

注:各製品に最適化されたプロトコールをリンクしています。


キット内容 容量 用途 種交差性 ホモロジー† 検出分子量 アイソタイプ
LC3A/B (D3U4C) XP® Rabbit mAb #12741 20 µl WB, IHC-P, IF-IC, F H, M, R X, B, Dg, Pg 14, 16 Rabbit IgG
Atg7 (D12B11) Rabbit mAb #8558 20 µl WB, IP H, M, R Mk, B 78 Rabbit IgG
Atg4B (D1G2R) Rabbit mAb #13507 20 µl WB, IP H, M, R 48 Rabbit IgG
Atg4A (D62C10) Rabbit mAb #7613 20 µl WB, IP H, R 48-60 Rabbit IgG
GABARAP (E1J4E) Rabbit mAb #13733 20 µl WB, IF-IC H, M, R 14, 16 Rabbit IgG
Atg3 Antibody #3415 20 µl WB H, M, R, Mk C, X, B, Dg 40 Rabbit
Anti-rabbit IgG, HRP-linked Antibody #7074 100 µl WB Goat

†Species predicted to react based on 100% sequence homology.

Applications Key: W=Western Blotting, IHC-P=Immunohistochemistry (Paraffin), IF-IC=Immunofluorescence (Immunocytochemistry), F=Flow Cytometry, IP=Immunoprecipitation
Reactivity Key: H=Human, M=Mouse, R=Rat, Mk=Monkey

貯法
-20℃
社内データ

Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa, NIH/3T3, untreated (-) or chloroquine-treated (50 μM, overnight; +), using LC3A/B (D3U4C) XP® Rabbit mAb #12741.

Western Blotting

Western Blotting

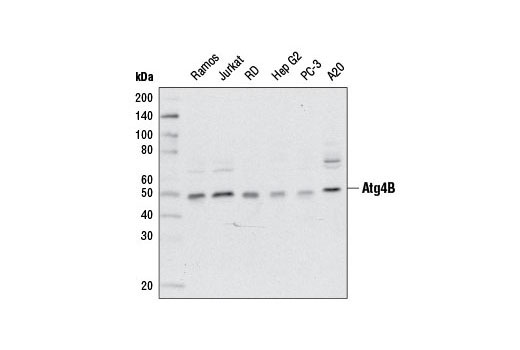

Western blot analysis of extracts from various cell lines using Atg4B (D1G2R) Rabbit mAb #13507.

Western Blotting

Western Blotting

Western blot analysis of A172 and C2C12 cells, untreated (-) or chloroquine-treated (50 μM, overnight; +), using GABARAP (E1J4E) Rabbit mAb #13733.


Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg3 Antibody #3415.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg4A (D62C10) Rabbit mAb #7613.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg7 (D12B11) Rabbit mAb #8558.


Western Blotting

Western Blotting

After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg3 Antibody.

Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-) or SignalSilence® Atg4A siRNA I #6427 (+), using Atg4A (D62C10) Rabbit mAb (upper) or α-Tubulin (11H10) Rabbit mAb #2125 (lower). The Atg4A (D62C10) Rabbit mAb confirms silencing of Atg4A expression, while the α-Tubulin (11H10) Rabbit mAb is used as a loading control.


Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg7 (D12B11) Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from RD cells, untreated (-) or Torin 1-treated (250 nM, 4 hr; +), using LC3A/B (D3U4C) XP® Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg4B (D1G2R) Rabbit mAb.


Western Blotting

Western Blotting

Western blot analysis of A172 and C2C12 cells, untreated (-) or chloroquine-treated (50 μM, overnight; +), using GABARAP (E1J4E) Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa cells, mock transfected or transfected with mouse Atg3, using Atg3 Antibody.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg4A (D62C10) Rabbit mAb.


Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-) or SignalSilence® Atg7 siRNA I #6604 (+), using Atg7 (D12B11) Rabbit mAb (upper) or α-Tubulin (11Η10) Rabbit mAb #2125 (lower). The Atg7 (D12B11) Rabbit mAb confirms silencing of Atg7 expression, while the α-Tubulin (11H10) Rabbit mAb is used as a loading control.

Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa, NIH/3T3, and KNRK cells, untreated (-) or chloroquine-treated (50 μM, overnight; +), using LC3A/B (D3U4C) XP® Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing full-length mouse Atg4B (mAtg4B; +), using Atg4B (D1G2R) Rabbit mAb.


Western Blotting

Western Blotting

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with constructs expressing Myc/DDK-tagged full-length human GABARAP (hGABARAP-Myc/DDK; +), human GABARAPL1 (hGABARAPL1-Myc/DDK; +), or human GABARAPL2 (hGABARAPL2-Myc/DDK; +), using GABARAP (E1J4E) Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a DYKDDDDK-tagged human Atg4A construct (+), using Atg4A (D62C10) Rabbit mAb (upper) and DYKDDDDK Tag Antibody #2368 (lower).

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded mouse prostate using LC3A/B (D3U4C) XP® Rabbit mAb.


Western Blotting

Western Blotting

Western blot analysis of extracts from RD cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-) or SignalSilence® Atg4B siRNA I #6336 (+), using Atg4B (D1G2R) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). The Atg4B (D1G2R) Rabbit mAb confirms silencing of Atg4B expression, while the β-Actin (D6A8) Rabbit mAb is used as a loading control.

IF-IC

IF-IC

Confocal immunofluorescent analysis of A172 cells, untreated (left) and chloroquine-treated (50 μM, overnight; right), using GABARAP (E1J4E) Rabbit mAb (green) and β-Actin (8H10D10) Mouse mAb #3700 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded NIH/3T3 cell pellets, control (left) or chloroquine-treated (right), using LC3A/B (D3U4C) XP® Rabbit mAb.


IP

IP

Immunoprecipitation of Atg4B from RD cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype control #3900 (lane 2) or Atg4B (D1G2R) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using Atg4B (D1G2R) Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human squamous cell lung carcinoma using LC3A/B (D3U4C) XP® Rabbit mAb in the presence of control peptide (left) or antigen-specific peptide (right).

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of HeLa cells, untreated (blue) or treated with chloroquine (50 µM, 16 hr) (green), using LC3A/B (D3U4C) Rabbit mAb. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 647 Conjugate) #4414 was used as a secondary antibody.


IF-IC

IF-IC

Confocal immunofluorescent analysis of HeLa (upper) and C2C12 (lower) cells, chloroquine-treated (50 μM, overnight; left), nutrient-starved with EBSS (3 hr, middle) or untreated (right) using LC3A/B (D3U4C) XP® Rabbit mAb (green) and β-Actin (13E5) Rabbit mAb (Alexa Fluor® 555 Conjugate) #8046 (red). Blue pseudocolor= DRAQ5® #4084 (fluorescent DNA dye).

バックグラウンド

Autophagy is a catabolic process for the autophagosomic-lysosomal degradation of bulk cytoplasmic contents (1,2). Autophagy is generally activated by conditions of nutrient deprivation, but it has also been associated with a number of physiological processes including development, differentiation, neurodegenerative diseases, infection, and cancer (3). Autophagy marker Light Chain 3 (LC3) was originally identified as a subunit of microtubule-associated proteins 1A and 1B (termed MAP1LC3) (4) and subsequently found to contain similarity to the yeast protein Apg8/Aut7/Cvt5 critical for autophagy (5). Three human LC3 isoforms (LC3A, LC3B, and LC3C) undergo post-translational modifications during autophagy (6-8). Cleavage of LC3 at the carboxy terminus immediately following synthesis yields the cytosolic LC3-I form. During autophagy, LC3-I is converted to LC3-II through lipidation by a ubiquitin-like system involving Atg7 and Atg3 that allows for LC3 to become associated with autophagic vesicles (6-9). The presence of LC3 in autophagosomes and the conversion of LC3 to the lower migrating form, LC3-II, have been used as indicators of autophagy (10). Numerous mammalian counterparts to yeast Atg proteins have been described, including three Atg8 proteins (GATE-16, GABARAP, and LC3) and four Atg4 homologs (Atg4A/autophagin-2, Atg4B/autophagin-1, Atg4C/autophagin-3, and Atg4D/autophagin-4) (10-12). The cysteine protease Atg4 is pivotal to autophagosome membrane generation and regulation (13). GABAA receptor associated protein (GABARAP) is an Atg8 family protein with a key role in autophagy, which was originally discovered as a protein associated with the GABAA receptor regulating receptor trafficking to the plasma membrane (14). Processing of GABARAP involves cleavage by Atg4 family members (15,16) followed by conjugation by the E1 and E2 like enzymes Atg7 and Atg3 (17,18).

使用例
製品をご使用いただいて研究を発表されましたら、ぜひお知らせください
