#19984 AsCpf1 (Strain BV3L6) (E1U7C) Rabbit mAb


Shopping Days対象製品 対象製品の中から、まとめて購入で一部製品が無料に!


CSTコード 包装
希望納入価格 (円)
Shopping Daysで購入
国内在庫 i
2019年3月22日15時35分 現在
ご登録代理店情報 i
#19984S100 μL56,000

Cpf1 製品一覧 | #19984 が入っているAntibody Sampler キット一覧

感度分子量 (kDa)抗体の由来貯法
トランスフェクト151Rabbit IgG-20℃
種交差性 (社内試験済)
交差する可能性がある種 i


19984 の推奨プロトコール i

最適な結果を得るために:Cell Signaling Technology (CST) 社は、各製品の推奨プロトコールを使用することを強くお薦めいたします。



ウェスタンブロッティング (1:1000)免疫蛍光細胞染色 (IF-IC) (1:400)フローサイトメトリー (1:400)


トランスフェクトレベルのAsCpf1 (Strain BV3L6) タンパク質を検出します。Cas9 (S. pyogenes)、Cas9 (S. aureus)、FnCpf1 (Strain U112) タンパク質とは交差しません。
Acidaminococcus sp. Cpf1 (Strain BV3L6) タンパク質のLeu822 周辺領域 (合成ペプチド)

ホモロジー (相同性) 検索をご希望の場合 >>>



※下記の社内データは、すべて19984 の推奨プロトコールで実験した結果です。

Western Blotting

Western Blotting

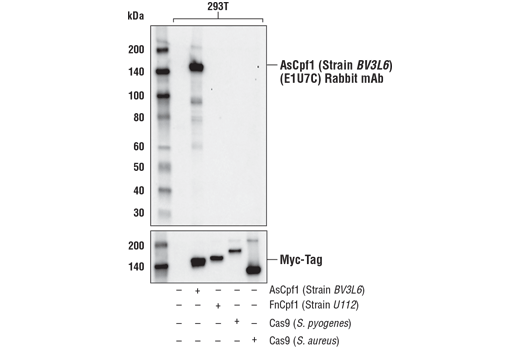

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing AsCpf1 (Strain BV3L6), FnCpf1 (Strain U112), Cas9 (S. pyogenes), or Cas9 (S. aureus) (+), using AsCpf1 (Strain BV3L6) (E1U7C) Rabbit mAb (upper) and Myc-Tag (71D10) Rabbit mAb #2278 (lower).



Confocal immunofluorescent analysis of 293T cells transfected with a construct expressing myc-tagged AsCpf1 (Strain BV3L6) using AsCpf1 (Strain BV3L6) (E1U7C) Rabbit mAb (green) and Myc-Tag (9B11) Mouse mAb #2276 (red).

Overlapping signals are shown in yellow. Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of 293 cells, untransfected (blue) or transfected with myc-tagged AsCpf1 (Strain BV3L6) (green), using AsCpf1 (Strain BV3L6) (E1U7C) Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.


CRISPR-Cas (clustered regularly interspaced short palindromic repeats and CRISPR-associated proteins) are RNA-guided nuclease effectors that are utilized for precise genome editing in mammalian systems (1). Cpf1 (CRISPR from Prevotella and Francisella) are members of the Class 2 CRISPR system (2). Class 2 CRISPR systems, such as the well characterized Cas9, rely on single-component effector proteins to mediate DNA interference (3). Cpf1 endonucleases, compared to Cas9 systems, have several unique features that increase the utility of CRISPR-based genome editing techniques: 1) Cpf1-mediated cleavage relies on a single and short CRISPR RNA (crRNA) without the requirement of a trans-activating crRNA (tracrRNA), 2) Cpf1 utilizes T-Rich protospacer adjacent motif (PAM) sequences rather than a G-Rich PAM, and 3) Cpf1 generates a staggered, rather than a blunt-ended, DNA double-stranded break (2). These features broaden the utility of using CRISPR-Cas systems for specific gene regulation and therapeutic applications. Several Cpf1 bacterial orthologs have been characterized for CRISPR-mediated mammalian genome editing (2, 4).

AsCpf1 (Strain BV3L6) is a Cpf1 enzyme derived from Acidaminococcus sp. BV3L6 (5, 6).

12630   SignalFire™ Plus ECL Reagent
12757   SignalFire™ Elite ECL Reagent
13953   Prestained Protein Marker, Broad Range (11-190 kDa)
2276   Myc-Tag (9B11) Mouse mAb
3900   Rabbit (DA1E) mAb IgG XP® Isotype Control
4084   DRAQ5®
4412   Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate)
6883   SignalFire™ ECL Reagent
7727   Biotinylated Protein Ladder Detection Pack
9997   Tris Buffered Saline with Tween® 20 (TBST-10X)
9999   Nonfat Dry Milk

The Alexa Fluor dye antibody conjugates in this product are sold under license from Life Technologies Corporation, for research use only for immunocytometry, immunohistochemistry, high content screening (HCS) analysis, or flow cytometry applications.
DRAQ5 is a registered trademark of Biostatus Limited.
Tween is a registered trademark of ICI Americas, Inc.
XP is a registered trademark of Cell Signaling Technology, Inc.
Alexa Fluor is a registered trademark of Life Technologies Corporation.
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
The transfer of this product is contingent on the buyer using the purchased product solely in research conducted by the buyer (whether the buyer is an academic or for-profit entity), for Immunocytochemistry, high content screening (HCS) analysis, or flow cytometry applications. The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) resale, whether or not such product or its components are resold for use in research; or for any other commercial purpose. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@lifetech.com.
