#4445 Autophagy Antibody Sampler Kit

CSTコード 包装
希望納入価格 (円)
国内在庫 i
2019年1月17日15時10分 現在
ご登録代理店情報 i
カスタマー情報にご登録いただいた代理店を表示しています。
ご登録代理店の変更はこちら
#4445T1 Kit99,000
ログインすると国内在庫状況がご確認いただけます。

Autophagy 製品一覧

4445 の推奨プロトコール i

最適な結果を得るために:Cell Signaling Technology (CST) 社は、各製品の推奨プロトコールを使用することを強くお薦めいたします。
推奨プロトコールはCST社内試験の徹底的なバリデーションに基づいて作成されておりますので、正確かつ再現性の高い結果が得られます。

注:各製品に最適化されたプロトコールをリンクしています。


キット内容 容量 用途 種交差性 ホモロジー† 検出分子量 アイソタイプ
Beclin-1 (D40C5) Rabbit mAb #3495 20 µl WB, IP H, M, R, Mk 60 Rabbit IgG
LC3A/B (D3U4C) XP® Rabbit mAb #12741 20 µl WB, IHC-P, IF-IC, F H, M, R X, B, Dg, Pg 14, 16 Rabbit IgG
Atg5 (D5F5U) Rabbit mAb #12994 20 µl WB, IP H, M, R Mk, X, Dg, Pg 55 Rabbit IgG
Atg12 (D88H11) Rabbit mAb #4180 20 µl WB, IP H, M, R, Mk 16, 55 Rabbit IgG
Atg16L1 (D6D5) Rabbit mAb #8089 20 µl WB, IP, IF-IC H, M, R Mk 66, 68 Rabbit IgG
Atg7 (D12B11) Rabbit mAb #8558 20 µl WB, IP H, M, R Mk, B 78 Rabbit IgG
Atg3 Antibody #3415 20 µl WB H, M, R, Mk C, X, B, Dg 40 Rabbit
Anti-rabbit IgG, HRP-linked Antibody #7074 100 µl WB Goat

†Species predicted to react based on 100% sequence homology.

Applications Key: W=Western Blotting, IP=Immunoprecipitation, IHC-P=Immunohistochemistry (Paraffin), IF-IC=Immunofluorescence (Immunocytochemistry), F=Flow Cytometry
Reactivity Key: H=Human, M=Mouse, R=Rat, Mk=Monkey

貯法
-20℃
※括弧付きの動物種は配列が100%相同であるため反応すると推定されます。
社内データ

Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa, NIH/3T3, and KNRK cells, untreated (-) or chloroquine-treated (50 μM, overnight; +), using LC3A/B (D3U4C) XP® Rabbit mAb #12741.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg5 (D5F5U) Rabbit mAb #12994.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg16L1 (D6D5) Rabbit mAb #8089.


Western Blotting

Western Blotting

After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg3 Antibody.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Beclin-1 (D40C5) Rabbit mAb.


Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg12 (D88H11) Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg7 (D12B11) Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg16L1 (D6D5) Rabbit mAb.


Western Blotting

Western Blotting

Western blot analysis of extracts from RD cells, untreated (-) or Torin 1-treated (250 nM, 4 hr; +), using LC3A/B (D3U4C) XP® Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using Atg5 (D5F5U) Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa cells, mock transfected or transfected with mouse Atg3, using Atg3 Antibody.


Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-), SignalSilence® Beclin-1 siRNA I #6222 (+) or SignalSilence® Beclin-1 siRNA II (+), using Beclin-1 (D40C5) XP® Rabbit mAb #3495 (upper) or α-Tubulin (11H10) Rabbit mAb #2125 (lower). The Beclin-1 (D40C5) XP® Rabbit mAb confirms silencing of Beclin-1 expression, while the α-Tubulin (11H10) Rabbit mAb is used to control for loading and specificity of Beclin-1 siRNA.

Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-) or SignalSilence® Atg7 siRNA I #6604 (+), using Atg7 (D12B11) Rabbit mAb (upper) or α-Tubulin (11Η10) Rabbit mAb #2125 (lower). The Atg7 (D12B11) Rabbit mAb confirms silencing of Atg7 expression, while the α-Tubulin (11H10) Rabbit mAb is used as a loading control.

Western Blotting

Western Blotting

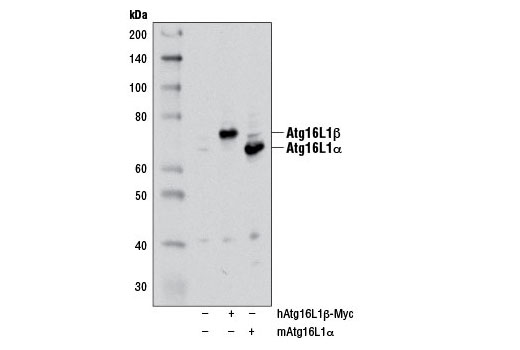

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with either a myc-tagged human Atg16L1β construct (hAtg16L1β-Myc; +) or a mouse Atg16L1α construct (mAtg16L1α; +), using Atg16L1 (D6D5) Rabbit mAb. The myc-tagged human Atg16L1β construct was kindly provided by Dr. Qing Zhong, University of California Berkeley.


Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa, NIH/3T3, and KNRK cells, untreated (-) or chloroquine-treated (50 μM, overnight; +), using LC3A/B (D3U4C) XP® Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from wild-type MEFs (wt) or MEFs from Atg5 knockouts (Atg5-/-) using Atg5 (D5F5U) Rabbit mAb (upper), or β-Actin (D6A8) Rabbit mAb #8457 (lower). Atg5-/- MEFs were kindly provided by Dr. Ramnik Xavier, Massachusetts General Hospital, Harvard Medical School, Boston, MA.

IF-IC

IF-IC

Confocal immunofluorescent analysis of EBSS-starved PANC-1 cells using Atg16L1 (D6D5) Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded mouse prostate using LC3A/B (D3U4C) XP® Rabbit mAb.

IP

IP

Immunoprecipitation of Atg5 from PANC-1 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Atg5 (D5F5U) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot was performed using Atg5 (D5F5U) Rabbit mAb. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb #3678 was used as a secondary antibody to avoid cross-reactivity with rabbit IgG.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded NIH/3T3 cell pellets, control (left) or chloroquine-treated (right), using LC3A/B (D3U4C) XP® Rabbit mAb.


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human squamous cell lung carcinoma using LC3A/B (D3U4C) XP® Rabbit mAb in the presence of control peptide (left) or antigen-specific peptide (right).

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of HeLa cells, untreated (blue) or treated with chloroquine (50 µM, 16 hr) (green), using LC3A/B (D3U4C) Rabbit mAb. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 647 Conjugate) #4414 was used as a secondary antibody.

IF-IC

IF-IC

Confocal immunofluorescent analysis of HeLa (upper) and C2C12 (lower) cells, chloroquine-treated (50 μM, overnight; left), nutrient-starved with EBSS (3 hr, middle) or untreated (right) using LC3A/B (D3U4C) XP® Rabbit mAb (green) and β-Actin (13E5) Rabbit mAb (Alexa Fluor® 555 Conjugate) #8046 (red). Blue pseudocolor= DRAQ5® #4084 (fluorescent DNA dye).


バックグラウンド

Autophagy is a catabolic process for the autophagosomic-lysosomal degradation of bulk cytoplasmic contents (1,2). Autophagy is generally activated by conditions of nutrient deprivation but has also been associated with a number of physiological processes including development, differentiation, neurodegeneration, infection, and cancer (3). The molecular machinery of autophagy was largely discovered in yeast and referred to as autophagy-related (Atg) genes. Formation of the autophagosome involves a ubiquitin-like conjugation system in which Atg12 is covalently bound to Atg5 and targeted to autophagosome vesicles (4-6). This conjugation reaction is mediated by the ubiquitin E1-like enzyme Atg7 and the E2-like enzyme Atg10 (7,8).
