#45208 TIM-3 (D5D5R™) XP® Rabbit mAb

Shopping Days対象製品 対象製品の中から、まとめて購入で一部製品が無料に!
*ウェブで専用注文書を作成し、代理店へご注文ください。

をクリックすると選べます。

CSTコード 包装
希望納入価格 (円)
Shopping Daysで購入
国内在庫 i
2019年1月18日15時10分 現在
ご登録代理店情報 i
カスタマー情報にご登録いただいた代理店を表示しています。
ご登録代理店の変更はこちら
#45208S100 μL138,000
ログインすると国内在庫状況がご確認いただけます。
#45208T20 μL49,000

TIM-3 製品一覧 | #45208 が入っているAntibody Sampler キット一覧

感度分子量 (kDa)抗体の由来貯法
内在性45-70Rabbit IgG-20℃
種交差性 (社内試験済)
交差する可能性がある種 i

社内試験はしていませんが、配列が100%相同であるため反応すると推定される種

ヒト -
45208 の推奨プロトコール i

最適な結果を得るために:Cell Signaling Technology (CST) 社は、各製品の推奨プロトコールを使用することを強くお薦めいたします。
推奨プロトコールはCST社内試験の徹底的なバリデーションに基づいて作成されておりますので、正確かつ再現性の高い結果が得られます。

注:各製品に最適化されたプロトコールをリンクしています。



ウェスタンブロッティング (1:1000)免疫沈降 (1:50)免疫組織染色 (パラフィン) (1:400)フローサイトメトリー (1:50)Immunohistochemistry (Leica® Bond™) (1:100)

下記ステップについては、データシートの右側もあわせてご参照ください。

IHC-P: 抗体希釈液 / 抗原賦活化

CST推奨プロトコールに欠かせない関連製品

特異性・感度
内在性レベルのTIM-3 タンパク質を検出します。
使用抗原
ヒトのTIM-3 タンパク質の細胞外ドメインに特異的な組換えタンパク質

ホモロジー (相同性) 検索をご希望の場合 >>>

ホモロジー検索をご要望の際は、ご希望のサンプル種のアミノ酸配列とともにお問合せください。

社内データ

※下記の社内データは、すべて45208 の推奨プロトコールで実験した結果です。

Western Blotting

Western Blotting

Western blot analysis of extracts from primary human CD4+ T cells and various cell lines using TIM-3 (D5D5R™) XP® Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). CD4+ T cells were purified from human blood and stimulated for 9 days using beads coated with CD3 and CD28 antibodies in the presence of Human Interleukin-2 (hIL-2) #8907 (6.7 ng/ml).

Western Blotting

Western Blotting

Western blot analysis of extracts from 293T cells, untransfected (-) or transfected with a construct expressing full-length human Myc/DDK-tagged TIM-3 (hTIM-3-Myc/DDK; +), using TIM-3 (D5D5R™) XP® Rabbit mAb.

IHC-Leica® Bond™

IHC-Leica® Bond™

Immunohistochemical analysis of paraffin-embedded renal clear cell carcinoma using TIM-3 (D5D5R™) XP® Rabbit mAb performed on the Leica® BOND™ Rx.


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human tonsil using TIM-3 (D5D5R™) XP® Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human colon carcinoma using TIM-3 (D5D5R™) XP® Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human lung carcinoma using TIM-3 (D5D5R™) XP® Rabbit mAb. Note staining of alveolar macrophages.


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded cell pellets, primary CD4+ T cells (left) and HT-29 cells (right), using TIM-3 (D5D5R™) XP® Rabbit mAb. CD4+ T cells were purified from human blood and stimulated for 7 days using beads coated with CD3 and CD28 antibodies in the presence of Human Interleukin-2 (hIL-2) #8907 (6.7 ng/ml).

IHC-P (paraffin)

IHC-P (paraffin)

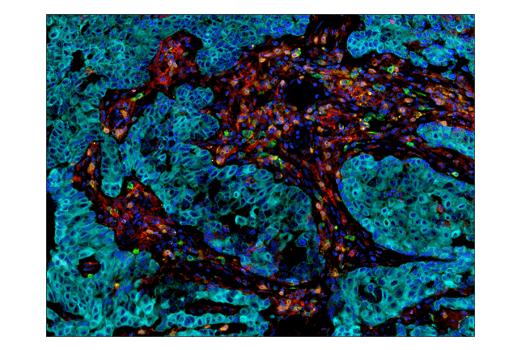

Multiplex immunohistochemical analysis of paraffin-embedded human breast carcinoma usng TIM-3 (D5D5R™) XP® rabbit mAb (yellow), PD-1 (D4W2J) XP® rabbit mAb #86163 (green), PD-L1 (E1L3N®) XP® rabbit mAb #13684 (red), LAG3 (D2G4O™) XP® rabbit mAb #15372 (magenta), CD8α (C8/144B) mouse mAb #70306 (orange), and Pan-keratin (C11) mouse mAb #4545 (cyan).

IHC-P (paraffin)

IHC-P (paraffin)

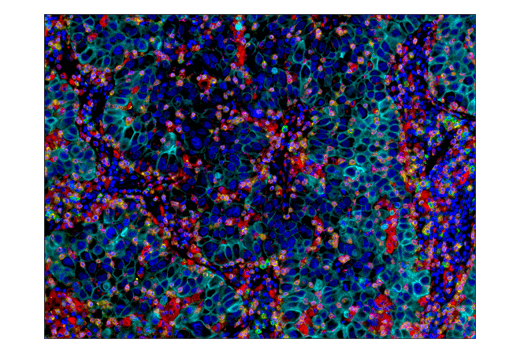

Multiplex immunohistochemical analysis of paraffin-embedded human lung adenocarcinoma using TIM-3 (D5D5R™) XP® rabbit mAb, PD-1 (EH33) mouse mAb #43248 (green), CD8α (C8/144B) mouse mAb #70306 (magenta), CD68 (D4B9C) XP® rabbit mAb #76437 (red), Pan-keratin (C11) mouse mAb #4545 (cyan),and LAG3 (D2G4O™) XP® rabbit mAb #15372 (orange).


IHC-P (paraffin)

IHC-P (paraffin)

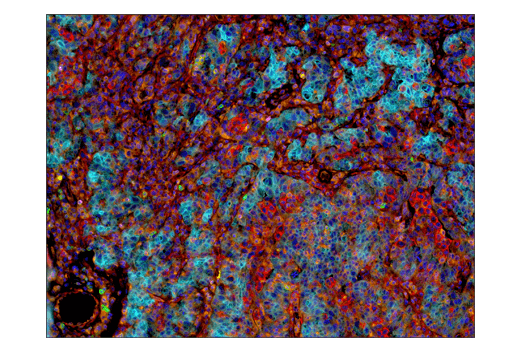

Multiplex immunohistochemical analysis of paraffin-embedded human ovarian carcinoma using TIM-3 (D5D5R™) XP® rabbit mAb (yellow), PD-1 (D4W2J) XP® rabbit mAb #86163 (green), B7-H3 (D9M2L) XP® rabbit mAb #14058 (red), B7-H4 (D1M8I) XP® rabbit mAb (cyan), LAG3 (D2G4O™) XP® rabbit mAb #15372 (magenta), and VISTA (D1L2G™) XP® rabbit mAb #64953 (orange).

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of Jurkat cells (blue) and primary CD4+ T cells (green) using TIM-3 (D5D5R™) XP® Rabbit mAb. Controls were run on Jurkat cells (orange) and primary CD4+ T cells (red) using concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900. Anti-rabbit IgG (H+L), F(ab')2 fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody. CD4+ T cells were purified from human blood and stimulated for 9 days using beads coated with CD3 and CD28 antibodies in the presence of Human Interleukin-2 (hIL-2) #8907 (6.7 ng/ml).

バックグラウンド

T cell Ig- and mucin-domain-containing molecules (TIMs) are a family of transmembrane proteins expressed by various immune cells. TIM-3 is an inhibitory molecule that is induced following T cell activation (1-3 ). TIM-3 is expressed by exhausted T cells in the settings of chronic infection and cancer (4,5), and tumor-infiltrating T cells that coexpress PD-1 and TIM-3 exhibit the most severe exhausted phenotype (5). Tumor-infiltrating dendritic cells (DCs) also express TIM-3. TIM-3 expression on DCs was found to suppress innate immunity by reducing the immunogenicity of nucleic acids released by dying tumor cells (6). Research studies show that heterodimerization of TIM-3 with CEACAM-1 is critical for the inhibitory function of TIM-3, and co-blockade of TIM-3 and CEACAM-1 enhanced antitumor responses in a mouse model of colorectal cancer (7). In addition, blockade of TIM-3 in mouse models of autoimmunity enhanced the severity of disease (1). Finally, binding of Galectin-9 to TIM-3 expressed by Th1 cells induces T cell death (8).

使用例

関連製品
7003   20X LumiGLO® Reagent and 20X Peroxide
7071   Phototope-HRP Western Blot Detection System, Anti-rabbit IgG, HRP-linked Antibody
7074   Anti-rabbit IgG, HRP-linked Antibody
7727   Biotinylated Protein Ladder Detection Pack
8059   SignalStain® DAB Substrate Kit
8112   SignalStain® Antibody Diluent
8114   SignalStain® Boost IHC Detection Reagent (HRP, Rabbit)
9997   Tris Buffered Saline with Tween® 20 (TBST-10X)

BOND is a trademark of Leica Biosystems Melbourne Pty. Ltd. No affiliation or sponsorship between CST and Leica Microsystems IR GmbH or Leica Biosystems Melbourne Pty. Ltd is implied.
Tween is a registered trademark of ICI Americas, Inc.
SignalStain is a trademark of Cell Signaling Technology, Inc.
LEICA is a registered trade​mark of Leica Microsystems IR GmbH.
XP is a registered trademark of Cell Signaling Technology, Inc.
Alexa Fluor is a registered trademark of Life Technologies Corporation.
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

本製品は試験研究用です。
