#8336 ALK Activation Antibody Sampler Kit

CSTコード 包装
希望納入価格 (円)
国内在庫 i
2019年1月18日15時10分 現在
ご登録代理店情報 i
カスタマー情報にご登録いただいた代理店を表示しています。
ご登録代理店の変更はこちら
#8336T1 Kit115,000
ログインすると国内在庫状況がご確認いただけます。

ALK 製品一覧

8336 の推奨プロトコール i

最適な結果を得るために:Cell Signaling Technology (CST) 社は、各製品の推奨プロトコールを使用することを強くお薦めいたします。
推奨プロトコールはCST社内試験の徹底的なバリデーションに基づいて作成されておりますので、正確かつ再現性の高い結果が得られます。

注:各製品に最適化されたプロトコールをリンクしています。


キット内容 容量 用途 種交差性 ホモロジー† 検出分子量 アイソタイプ
Phospho-ALK (Tyr1586) (3B4) Rabbit mAb #3348 20 µl WB H M 80 (NPM-ALK) 220 (ALK) Rabbit IgG
Phospho-Jak3 (Tyr980/981) (D44E3) Rabbit mAb #5031 20 µl WB H, M Mk 115 Rabbit IgG
Phospho-Jak2 (Tyr1007) (D15E2) Rabbit mAb #4406 20 µl WB H, M R, Mk, B 125 Rabbit IgG
Phospho-Stat3 (Tyr705) (D3A7) XP® Rabbit mAb #9145 20 µl WB, IP, IHC-P, IHC-F, IF-IC, F, ChIP, ChIP-seq H, M, R, Mk Hm, B, Pg, Hr 79, 86 Rabbit IgG
Phospho-Stat5 (Tyr694) (D47E7) XP® Rabbit mAb #4322 20 µl WB, IF-IC, F H, M R, B 90 Rabbit IgG
Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370 20 µl WB, IP, IHC-P, IF-IC, F H, M, R, Hm, Mk, Mi, Dm, Z, B, Dg, Pg, Sc C, Ce 44, 42 Rabbit IgG
Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb #4060 20 µl WB, IP, IHC-P, IF-IC, F H, M, R, Hm, Mk, Dm, Z, B C, X, Dg, Pg 60 Rabbit IgG
Phospho-Src Family (Tyr416) (D49G4) Rabbit mAb #6943 20 µl WB, IP H, M, R, Mk 60 Rabbit IgG
Phospho-PLCγ1 (Tyr783) (D6M9S) Rabbit mAb #14008 20 µl WB, IP, F H, M R, X, B, Dg 155 Rabbit IgG
Anti-rabbit IgG, HRP-linked Antibody #7074 100 µl WB Goat

†Species predicted to react based on 100% sequence homology.

Applications Key: W=Western Blotting, IP=Immunoprecipitation, IHC-P=Immunohistochemistry (Paraffin), IHC-F=Immunohistochemistry (Frozen), IF-IC=Immunofluorescence (Immunocytochemistry), F=Flow Cytometry, ChIP=Chromatin IP, ChIP-seq=Chromatin IP-seq
Reactivity Key: H=Human, M=Mouse, R=Rat, Mk=Monkey, Hm=Hamster, Mi=Mink, Dm=D. melanogaster, Z=Zebrafish, B=Bovine, Dg=Dog, Pg=Pig, Sc=S. cerevisiae

貯法
-20℃
社内データ

Western Blotting

Western Blotting

After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.

Western Blotting

Western Blotting

Western blot analysis of extracts from IFN-alpha treated Jurkat cells and HeLa cells (left), as well as EGF treated A431 cells (right), using Phospho-Stat3 (Tyr705) (D3A7) XP® Rabbit mAb. Note that the basal phospho-Stat3 in A431 is detected by the antibody.

Western Blotting

Western Blotting

Western blot analysis of Sup-M2 cell lysate, using Phospho-ALK (Tyr1586) (3B4) Rabbit mAb (A and B), and ALK Antibody (C and D).The phospho-specificity of this antibody was characterized by treating the membrane with calf intestinal alkaline phosphatase (CIP) (B and D) after Western transfer.


Western Blotting

Western Blotting

Western blot analysis of extracts from PC-3 cells, untreated or LY294002/wortmannin-treated, and NIH/3T3 cells, serum-starved or PDGF-treated, using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb (upper) or Akt (pan) (C67E7) Rabbit mAb #4691 (lower).

Western Blotting

Western Blotting

Western blot analysis of extracts from COS cells, untreated or treated with either U0126 #9903 (10 µM for 1h) or TPA #4174 (200 nM for 10 m), using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370 and p44/42 MAPK (Erk1/2) (3A7) Mouse mAb #9107.

Western Blotting

Western Blotting

Western blot analysis of extracts from UT-7 cells, untreated or treated with erythropoietin (EPO; 3 units/ml for 5 min), TF-1 cells, untreated or treated with Human Granulocyte Macrophage Colony Stimulating Factor #8922 (hGM-CSF; 100 ng/ml for 10 min), and NK-92 cells, untreated or treated with Human Interleukin-2 #8907 (hIL-2; 100 ng/ml for 10 min), using Phospho-Stat5 (Tyr694) (D47E7) XP® Rabbit mAb.


Western Blotting

Western Blotting

Western blot analysis of extracts from UT-7 cells, untreated or treated with erythropoietin (EPO; 3 units/ml; 5 min) and from untreated HEL cells, using Phospho-Jak2 (Tyr1007) (D15E2) Rabbit mAb (upper) or total Jak2 (D2E12) Rabbit mAb #3230 (lower). HEL cells contain a V617F activating mutation in Jak2.

Western Blotting

Western Blotting

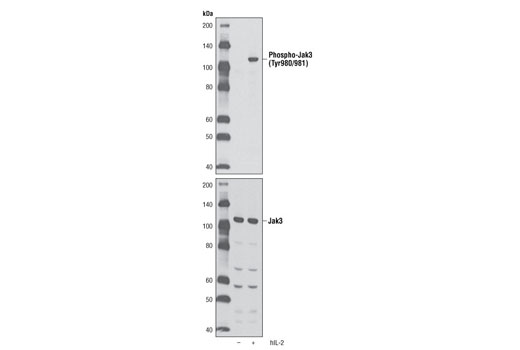

Western blot analysis of extracts from NK-92 cells, untreated or treated with Human Interleukin-2 (hIL-2) #8907 (10 ng/ml, 15 minutes), using Phospho-Jak3 (Tyr980/981) (D44E3) Rabbit mAb (upper) or Jak3 Antibody #3775 (lower).

Western Blotting

Western Blotting

Western blot analysis of extracts NIH/3T3 cells, serum-starved or treated with human Platelet-Derived Growth Factor BB hPDGF-BB #8912 (100 ng/ml, 15 min), using Phospho-Src Family (Tyr416) (D49G4) Rabbit mAb (upper) or Src (36D10) Rabbit mAb #2109 (lower).


Western Blotting

Western Blotting

Western blot analysis of extracts from NIH/3T3 cells, untreated (-) or stimulated with hPDGF-BB #8912 (5 min; +), and from A-431 cells, untreated (-) or stimulated with hEGF #8916 (5 min; +), using Phospho-PLCγ1 (Tyr783) (D6M9S) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).

Chromatin IP-seq

Chromatin IP-seq

Chromatin immunoprecipitations were performed with cross-linked chromatin from Hep G2 cells starved overnight and treated with IL-6 (100 ng/ml) for 30 minutes and Phospho-Stat3 (Tyr705) (D3A7) XP® Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® #56795. The figure shows binding across IRF1, a known target gene of Phospho-Sata3 (see additional figure containing ChIP-qPCR data). For additional ChIP-seq tracks, please download the product data sheet.

Western Blotting

Western Blotting

Western blot analysis of extracts from 293, NIH/3T3 and C6 cells, treated with λ phosphatase or TPA #4174 as indicated, using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb (upper), or p44/42 MAPK (Erk1/2) (137F5) Rabbit mAb #4695 (lower).


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded MDA-MB-468 xenograft using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb (left) or PTEN (138G6) Rabbit mAb #9559 (right). Note the presence of P-Akt staining in the PTEN deficient MDA-MB-468 cells.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded Apc (min/+) mouse intestine, using Phosho-Stat3 (Tyr705) (D3A7) XP® Rabbit mAb.

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of TF-1 cells, untreated (blue) or GM-CSF treated (green), using Phospho-Stat5 (Tyr694) (D47E7) XP® Rabbit mAb.


Chromatin IP

Chromatin IP

Chromatin immunoprecipitations were performed with cross-linked chromatin from Hep G2 cells starved overnight and treated with IL-6 (100 ng/ml) for 30 minutes, and either Phospho-Stat3 (Tyr705) (D3A7) XP® Rabbit mAb or of Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using human IRF-1 promoter primers, SimpleChIP® Human c-Fos Promoter Primers #4663, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.

IP

IP

Immunoprecipitation of phospho-PLCγ1 (Tyr783) from A-431 cell extracts stimulated with hEGF #8916 using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Phospho-PLCγ1 (Tyr783) (D6M9S) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using Phospho-PLCγ1 (Tyr783) (D6M9S) Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin embedded human breast carcinoma, specifically endothelial cells, untreated (left) or lambda phosphatase treated (right), using Phospho-Stat3 (Tyr705) (D3A7) XP® Rabbit mAb.


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human breast carcinoma comparing SignalStain® Antibody Diluent #8112 (left) to TBST/5% normal goat serum (right) using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb #4060.

IF-IC

IF-IC

Confocal immunofluorescent analysis of A-431 cells, EGF-treated (left) or untreated (right), using Phospho-Stat5 (Tyr694) XP®(D47E7) Rabbit mAb (green) and Pan-Keratin (C11) Mouse mAb #4545 (red).


Flow Cytometry

Flow Cytometry

Flow cytometric analysis of NIH/3T3 cells, untreated (blue) or treated with recombinant mouse PDGF-BB (200 ng/ml, 15 min; green), using Phospho-PLCγ1 (Tyr783) (D6M9S) Rabbit mAb. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.

IHC-P (paraffin)

IHC-P (paraffin)

Immunnohistochemical analysis of paraffin-embedded human lung carcinoma, showing nuclear localization, using Phospho-Stat3 (Tyr705) (D3A7) XP® Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human lung carcinoma, untreated (left) or λ phosphatase-treated (right), using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb.


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb on SignalSlide™ Phospho-p44/42 MAPK (Thr202/Tyr204) IHC Controls #8103 (paraffin-embedded NIH/3T3 cells, treated with U0126 #9903 (left) or TPA #4174 (right).

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb on SignalSlide® Phospho-Akt (Ser473) IHC Controls #8101 (paraffin-embedded LNCaP cells, untreated (left) or LY294002-treated (right)).


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis using Phospho-Stat3 (Tyr705) (D3A7) XP® Rabbit mAb on SignalSlide® HeLa -/+ IFNa IHC Controls #55861 (paraffin-embedded HeLa cell pellets, untreated (left) or treated with Human Interferon-α1 (hIFN-α1) #8927 (right)).

IHC-F (frozen)

IHC-F (frozen)

Immunohistochemical analysis of frozen H1650 xenograft using Phospho-Stat3 (Tyr705)(D3A7) XP® Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human lung carcinoma using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb.


Flow Cytometry

Flow Cytometry

Flow cytometric analysis of Jurkat cells, treated with U0126 (10 µM, 2 hrs; green) or treated with TPA #4174 (200 nM, 30 min; blue) using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of HeLa cells, untreated (blue) or IFN-α treated (green), using Phospho-Stat3 (Tyr705) (D3A7) XP® Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded PTEN heterozygous mutant mouse endometrium using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb. (Tissue section courtesy of Dr. Sabina Signoretti, Brigham and Women's Hospital, Harvard Medical School, Boston, MA.)


IF-IC

IF-IC

Confocal immunofluorescent analysis of Drosophila egg chambers, untreated (top) or λ phosphatase-treated (bottom), using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370 (green) and S6 Ribosomal Protein (54D2) Mouse mAb #2317 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

IF-IC

IF-IC

Confocal immunofluorescent analysis of HeLa cells, IFN-alpha treated (left) or untreated (right), labeled with Phospho-Stat3 (Tyr705) (D3A7) XP® Rabbit mAb (green).

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded U-87MG xenograft, untreated (left) or lambda phosphatase-treated (right), using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb.


IF-IC

IF-IC

Confocal immunofluorescent analysis of HT1080 cells, starved overnight then treated with U0126 #9903 (10 uM, 2 h; left) or PDBu (Phorbol 12,13-Dibutyrate) #12808 (100 nM, 15 m; right) using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370 (green) and β-Actin (8H10D10) Mouse mAb #3700 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of Jurkat cells, untreated (green) or treated with LY294002 #9901, wortmannin #9951 and U0126 #9903 (blue), using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb compared to a nonspecific negative control antibody (red).

IF-IC

IF-IC

Confocal immunofluorescent analysis of C2C12 cells, LY294002-treated (left) or insulin-treated (right), using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb (green). Actin filaments have been labeled with Alexa Fluor® 555 phalloidin #8953 (red). Blue pseudocolor = DRAQ5®#4084 (fluorescent DNA dye).


バックグラウンド

Anaplastic lymphoma kinase (ALK) is a tyrosine kinase receptor for pleiotrophin (PTN), a growth factor involved in embryonic brain development (1-3). In ALK-expressing cells, PTN induces phosphorylation of both ALK and the downstream effectors IRS-1, Shc, PLCγ, and PI3 kinase (1). ALK was originally discovered as a nucleophosmin (NPM)-ALK fusion protein produced by a translocation (4). Investigators have found that the NPM-ALK fusion protein is a constitutively active, oncogenic tyrosine kinase associated with anaplastic lymphoma (4). Research literature suggests that activation of PLCγ by NPM-ALK may be a crucial step for its mitogenic activity and involved in the pathogenesis of anaplastic lymphomas (5).

A distinct ALK oncogenic fusion protein involving ALK and echinoderm microtubule-associated protein like 4 (EML4) has been described in the research literature from a non-small cell lung cancer (NSCLC) cell line, with corresponding fusion transcripts present in some cases of lung adenocarcinoma. The short, amino-terminal region of the microtubule-associated protein EML4 is fused to the kinase domain of ALK (6-8).
