#8653 Organelle Localization IF Antibody Sampler Kit


CSTコード 包装
希望納入価格 (円)
国内在庫 i
2019年3月20日11時40分 現在
ご登録代理店情報 i
カスタマー情報にご登録いただいた代理店を表示しています。
ご登録代理店の変更はこちら
#8653T1 Kit84,000
ログインすると国内在庫状況がご確認いただけます。
8653 の推奨プロトコール i

最適な結果を得るために:Cell Signaling Technology (CST) 社は、各製品の推奨プロトコールを使用することを強くお薦めいたします。
推奨プロトコールはCST社内試験の徹底的なバリデーションに基づいて作成されておりますので、正確かつ再現性の高い結果が得られます。

注:各製品に最適化されたプロトコールをリンクしています。


キット内容 容量 用途 種交差性 ホモロジー† 検出分子量 アイソタイプ
AIF (D39D2) XP® Rabbit mAb #5318 20 µl WB, IP, IF-F, IF-IC H, M, R, Mk B, Dg 67 Rabbit IgG
EEA1 (C45B10) Rabbit mAb #3288 20 µl WB, IP, IF-IC H, M, R 170 Rabbit IgG
LAMP1 (D2D11) XP® Rabbit mAb #9091 20 µl WB, IP, IHC-P, IF-IC, F H, Mk 42 (non-glycosylated), 90-120 (glycosylated) Rabbit IgG
PDI (C81H6) Rabbit mAb #3501 20 µl WB, IHC-P, IF-IC H, M, R, Mk 57 Rabbit
RCAS1 (D2B6N) XP® Rabbit mAb #12290 20 µl WB, IP, IF-IC, F H, M, R 32 Rabbit IgG

†Species predicted to react based on 100% sequence homology.

Applications Key: W=Western Blotting, IP=Immunoprecipitation, IF-F=Immunofluorescence (Frozen), IF-IC=Immunofluorescence (Immunocytochemistry), IHC-P=Immunohistochemistry (Paraffin), F=Flow Cytometry
Reactivity Key: H=Human, M=Mouse, R=Rat, Mk=Monkey

貯法
-20℃
社内データ

Confocal immunofluorescent analysis of MCF7 cells, untreated (upper) or treated with Brefeldin A #9972 (5 μg/ml, 1 hr; lower), using RCAS1 (D2B6N) XP® Rabbit mAb #12290 (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

Confocal immunofluorescent analysis of HeLa cells using EEA1 (C45B10) Rabbit mAb #3288 (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

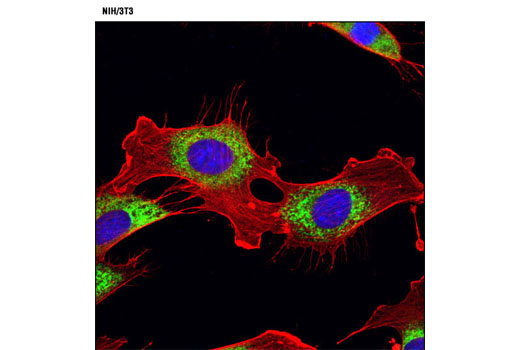

Confocal immunofluorescent analysis of NIH/3T3 cells using PDI (C81H6) Rabbit mAb #3501 (green) and β-Actin (8H10D10) Mouse mAb #3700 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).


Confocal immunofluorescent analysis of HeLa cells using AIF (D39D2) XP® Rabbit mAb #5318 (green), showing colocalization with mitochondria that were labeled with MitoTracker® Red CMXRos #9082 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

Confocal immunofluorescent analysis of HeLa cells using LAMP1 (D2D11) XP® Rabbit mAb #9091 (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using EEA1 (C45B10) Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell types using PDI (C81H6) Rabbit mAb.

IF-IC

IF-IC

Confocal immunofluorescent analysis of HeLa cells using AIF (D39D2) XP ™ Rabbit mAb (green), showing colocalization with mitochondria that have been labeled with MitoTracker® Red CMXRos (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).


Western Blotting

Western Blotting

Western blot analysis of extracts from Jurkat, C2C12, and C6 cells using AIF (D39D2) XP® Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using LAMP1 (D2D11) XP® Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from various cell lines using RCAS1 (D2B6N) XP® Rabbit mAb.


IF-IC

IF-IC

Confocal immunofluorescent analysis of HeLa cells using EEA1 (C45B10) Rabbit mAb (green). Actin filaments have been labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5™ (fluorescent DNA dye).

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human lung carcinoma using PDI (C81H6) Rabbit mAb.

IF-IC

IF-IC

Confocal immunofluorescent analysis of C2C12 cells using AIF (D39D2) XP® Rabbit mAb #5318 (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).


Western Blotting

Western Blotting

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing Myc/DDK-tagged full-length human RCAS1 (hRCAS1-Myc/DDK; +), using RCAS1 (D2B6N) XP® Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of normal human kidney using LAMP1 (D2D11) XP(R) Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human lymphoma using PDI (C81H6) Rabbit mAb.


IP

IP

Immunoprecipitation of RCAS1 from HCT 116 extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or RCAS1 (D2B6N) XP® Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using RCAS1 (D2B6N) XP® Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of human lung carcinoma using LAMP1 (D2D11) XP(R) Rabbit mAb.

IF-F

IF-F

Confocal analysis of mouse small intestine using AIF (D39D2) XP® Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded mouse spleen using PDI (C81H6) Rabbit mAb.

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of Jurkat cells using RCAS1 (D2B6N) XP® Rabbit mAb (blue) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (red).

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of human ovarian serous cystadenoma using LAMP1 (D2D11) XP(R) Rabbit mAb.


IF-IC

IF-IC

Confocal immunofluorescent analysis of NIH/3T3 cells using PDI (C81H6) Rabbit mAb (green) and β-Actin (8H10D10) Mouse mAb #3700 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

IF-IC

IF-IC

Confocal immunofluorescent analysis of MCF7 cells, untreated (left) or treated with Brefeldin A #9972 (5 μg/ml, 1 hr; right), using RCAS1 (D2B6N) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of Jurkat cells using LAMP1 (D2D11) XP® Rabbit mAb (solid line) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.


IF-IC

IF-IC

Confocal immunofluorescent analysis of HeLa cells using LAMP1 (D2D11) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

バックグラウンド

Knowledge of the subcellular location of a protein may reveal its potential role in a variety of cellular processes. One can confirm the subcellular location of a marker that colocalizes with one of the organelle-specific antibodies in this kit. While these antibodies serve as powerful tools for immunofluorescence, they may also be used as western blot controls for fractionated cell lysates.

使用例
製品をご使用いただいて研究を発表されましたら、ぜひお知らせください

関連製品
12630   SignalFire™ Plus ECL Reagent
12757   SignalFire™ Elite ECL Reagent
4084   DRAQ5®
6883   SignalFire™ ECL Reagent
7074   Anti-rabbit IgG, HRP-linked Antibody
7727   Biotinylated Protein Ladder Detection Pack
9999   Nonfat Dry Milk

DRAQ5 is a registered trademark of Biostatus Limited.
XP is a registered trademark of Cell Signaling Technology, Inc.
MitoTracker is a registered trademark of Molecular Probes, Inc.
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.

本製品は試験研究用です。
