#9360 PDGF Receptor α Antibody Sampler Kit
|Phospho-PDGF Receptor α (Tyr754) (23B2) Rabbit mAb #2992||20 µl||WB, IP||H, M||R||190||Rabbit|
|Phospho-PDGF Receptor α (Tyr849)/PDGF Receptor β (Tyr857) (C43E9) Rabbit mAb #3170||20 µl||WB, IP||H, M, R||190||Rabbit|
|Phospho-PDGF Receptor α (Tyr1018) Antibody #4547||20 µl||WB||H, M||190||Rabbit|
|PDGF Receptor α (D1E1E) XP® Rabbit mAb #3174||20 µl||WB, IP, IHC-P, IF-IC, F||H, M||190||Rabbit IgG|
|Anti-rabbit IgG, HRP-linked Antibody #7074||100 µl||WB||Goat|
†Species predicted to react based on 100% sequence homology.
Applications Key: W=Western Blotting, IP=Immunoprecipitation, IHC-P=Immunohistochemistry (Paraffin), IF-IC=Immunofluorescence (Immunocytochemistry), F=Flow Cytometry
Reactivity Key: H=Human, M=Mouse, R=Rat
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
Phospho-PDGF Receptor α (Tyr754) (23B2) Rabbit mAb specifically binds to tyrosine phosphorylated PDGF receptor α, but not other phosphorylated tyrosine kinases. Western blot analysis of of extracts from cells expressing different activated tyrosine kinase proteins, using Phospho-PDGF Receptor α (Tyr754) (23B2) Rabbit mAb (upper) or Phospho-Tyrosine Mouse mAb (P-Tyr-100) #9411 (lower).

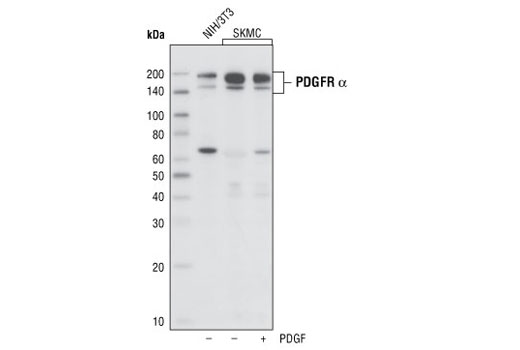

Western blot analysis of extracts from NIH/3T3 and human skeletal muscle cells (SKMC), untreated or treated with PDGF-BB, using PDGF Receptor α (D1E1E) XP® Rabbit mAb.
Western blot analysis of NIH/3T3 cells, untreated or treated with PDGFbb using Phospho-PDGF Receptor α (Tyr849)/PDGF Receptor β (Tyr857) (C43E9) Rabbit mAb (upper) and PDGF Receptor β (28E1) Rabbit mAb #3169 (lower).
Western blot analysis of cell extracts from NIH/3T3 cells, untreated or treated with PDGF-AA, using Phospho-PDGF Receptor α (Tyr1018) Antibody (upper) or PDGF Receptor α Antibody #3164 (lower).
Immunohistochemical analysis of paraffin-embedded human glioblastoma using PDGR Receptor α (D1E1E) XP® Rabbit mAb.
Immunohistochemical analysis of paraffin-embedded human colon using PDGR Receptor α (D1E1E) XP® Rabbit mAb.
Immunohistochemical analysis of paraffin-embedded U-118 MG xenograft using PDGF Receptor α (D1E1E) XP® Rabbit mAb in the presence of control peptide (left) or antigen specific peptide (right).
Immunohistochemical analysis of paraffin-embedded HCC827 xenograft using PDGF Receptor α (D1E1E) XP® Rabbit mAb.
Flow cytometric analysis of U-87 MG cells (blue) and H1703 cells (green) using PDGF Receptor α (D1E1E) XP® Rabbit mAb.
Confocal immunofluorescent analysis of A-204 (left) and U-87 MG cells (right) using PDGF Receptor α (D1E1E) XP® Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
Platelet derived growth factor (PDGF) family proteins exist as several disulphide-bonded, dimeric isoforms (PDGF AA, PDGF AB, PDGF BB, PDGF CC, and PDGF DD) that bind in a specific pattern to two closely related receptor tyrosine kinases, PDGF receptor α (PDGFRα) and PDGF receptor β (PDGFRβ). PDGFRα and PDGFRβ share 75% to 85% sequence homology between their two intracellular kinase domains, while the kinase insert and carboxy-terminal tail regions display a lower level (27% to 28%) of homology (1). PDGFRα homodimers bind all PDGF isoforms except those containing PDGF D. PDGFRβ homodimers bind PDGF BB and DD isoforms, as well as the PDGF AB heterodimer. The heteromeric PDGF receptor α/β binds PDGF B, C, and D homodimers, as well as the PDGF AB heterodimer (2). PDGFRα and PDGFRβ can each form heterodimers with EGFR, which is also activated by PDGF (3). Various cells differ in the total number of receptors present and in the receptor subunit composition, which may account for responsive differences among cell types to PDGF binding (4). Ligand binding induces receptor dimerization and autophosphorylation, followed by binding and activation of cytoplasmic SH2 domain-containing signal transduction molecules, such as GRB2, Src, GAP, PI3 kinase, PLCγ, and NCK. A number of different signaling pathways are initiated by activated PDGF receptors and lead to control of cell growth, actin reorganization, migration, and differentiation (5). Tyr751 in the kinase-insert region of PDGFRβ is the docking site for PI3 kinase (6). Phosphorylated pentapeptides derived from Tyr751 of PDGFRβ (pTyr751-Val-Pro-Met-Leu) inhibit the association of the carboxy-terminal SH2 domain of the p85 subunit of PI3 kinase with PDGFRβ (7). Tyr740 is also required for PDGFRβ-mediated PI3 kinase activation (8).
- Deuel, T.F. et al. (1988) Biofactors 1, 213-217.
- Bergsten, E. et al. (2001) Nat. Cell Biol. 3, 512-516.
- Betsholtz, C. et al. (2001) Bioessays 23, 494-507.
- Coughlin, S.R. et al. (1988) Prog. Clin. Biol. Res. 266, 39-45.
- Ostman, A. and Heldin, C.H. (2001) Adv. Cancer Res. 80, 1-38.
- Panayotou, G. et al. (1992) EMBO J. 11, 4261-4272.
- Ramalingam, K. et al. (1995) Bioorg. Med. Chem. 3, 1263-1272.
- Kashishian, A. et al. (1992) EMBO J. 11, 1373-1382.
