#9789 Phospho-EGF Receptor Pathway Antibody Sampler Kit


CSTコード 包装
希望納入価格 (円)
国内在庫 i
2019年3月20日11時40分 現在
ご登録代理店情報 i
カスタマー情報にご登録いただいた代理店を表示しています。
ご登録代理店の変更はこちら
#9789T1 Kit107,000
ログインすると国内在庫状況がご確認いただけます。

EGFR 製品一覧

9789 の推奨プロトコール i

最適な結果を得るために:Cell Signaling Technology (CST) 社は、各製品の推奨プロトコールを使用することを強くお薦めいたします。
推奨プロトコールはCST社内試験の徹底的なバリデーションに基づいて作成されておりますので、正確かつ再現性の高い結果が得られます。

注:各製品に最適化されたプロトコールをリンクしています。


キット内容 容量 用途 種交差性 ホモロジー† 検出分子量 アイソタイプ
Phospho-EGF Receptor (Tyr1068) (D7A5) XP® Rabbit mAb #3777 20 µl WB, IHC-P, IF-IC, F H, M, R, Mk 175 Rabbit IgG
Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb #4060 20 µl WB, IP, IHC-P, IF-IC, F H, M, R, Hm, Mk, Dm, Z, B C, X, Dg, Pg 60 Rabbit IgG
Phospho-Gab1 (Tyr627) (C32H2) Rabbit mAb #3233 20 µl WB H M, R 110 Rabbit IgG
Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370 20 µl WB, IP, IHC-P, IF-IC, F H, M, R, Hm, Mk, Mi, Dm, Z, B, Dg, Pg, Sc C, Ce 44, 42 Rabbit IgG
Phospho-Shc (Tyr239/240) Antibody #2434 20 µl WB H, M, R 50, 55, 70 Rabbit
Phospho-Stat5 (Tyr694) (D47E7) XP® Rabbit mAb #4322 20 µl WB, IF-IC, F H, M R, B 90 Rabbit IgG
Phospho-c-Cbl (Tyr700) (D16D7) Rabbit mAb #8869 20 µl WB, IP H M 120 Rabbit IgG
Phospho-PLCγ1 (Tyr783) (D6M9S) Rabbit mAb #14008 20 µl WB, IP, F H, M R, X, B, Dg 155 Rabbit IgG
Anti-rabbit IgG, HRP-linked Antibody #7074 100 µl WB Goat

†Species predicted to react based on 100% sequence homology.

Applications Key: W=Western Blotting, IHC-P=Immunohistochemistry (Paraffin), IF-IC=Immunofluorescence (Immunocytochemistry), F=Flow Cytometry, IP=Immunoprecipitation
Reactivity Key: H=Human, M=Mouse, R=Rat, Mk=Monkey, Hm=Hamster, Dm=D. melanogaster, Z=Zebrafish, B=Bovine, Mi=Mink, Dg=Dog, Pg=Pig, Sc=S. cerevisiae

貯法
-20℃
社内データ

Western Blotting

Western Blotting

After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.

Western Blotting

Western Blotting

Western blot analysis of extracts from HepG2 cells, untreated or EGF-treated (100 ng/ml) 18 hours of serum-starvation, and Jurkat cells, untreated or treated with anti-CD3 antibody (1 µg/ml for 10 minutes), using Phospho-Shc (Tyr239/240) Antibody (upper) or Shc antibody #2432 (lower).

Western Blotting

Western Blotting

Western blot analysis of extracts from PC-3 cells, untreated or LY294002/wortmannin-treated, and NIH/3T3 cells, serum-starved or PDGF-treated, using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb (upper) or Akt (pan) (C67E7) Rabbit mAb #4691 (lower).


Western Blotting

Western Blotting

Western blot analysis of cell extracts from T47D cells, untreated or stimulated with heregulin, using Phospho-Gab1 (Tyr627) (C32H2) Rabbit mAb (upper) or Gab1 Antibody #3232 (lower).

Western Blotting

Western Blotting

Western blot analysis of extracts from COS cells, untreated or treated with either U0126 #9903 (10 µM for 1h) or TPA #4174 (200 nM for 10 m), using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370 and p44/42 MAPK (Erk1/2) (3A7) Mouse mAb #9107.

Western Blotting

Western Blotting

Western blot analysis of extracts of BxPC-3 cells, untreated or EGF-stimulated, using Phospho-EGF Receptor (Tyr1068) (D7A5) XP® Rabbit mAb (upper) and EGF Receptor Antibody #2232 (lower).


Western Blotting

Western Blotting

Western blot analysis of extracts from UT-7 cells, untreated or treated with erythropoietin (EPO; 3 units/ml for 5 min), TF-1 cells, untreated or treated with Human Granulocyte Macrophage Colony Stimulating Factor #8922 (hGM-CSF; 100 ng/ml for 10 min), and NK-92 cells, untreated or treated with Human Interleukin-2 #8907 (hIL-2; 100 ng/ml for 10 min), using Phospho-Stat5 (Tyr694) (D47E7) XP® Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from Jurkat cells, untreated (-) or treated with pervanadate (1 mM; +), using Phospho-c-Cbl (Tyr700) (D16D7) Rabbit mAb (upper) or c-Cbl (D4E10) Rabbit mAb #8447 (lower).

Western Blotting

Western Blotting

Western blot analysis of extracts from NIH/3T3 cells, untreated (-) or stimulated with hPDGF-BB #8912 (5 min; +), and from A-431 cells, untreated (-) or stimulated with hEGF #8916 (5 min; +), using Phospho-PLCγ1 (Tyr783) (D6M9S) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).


Western Blotting

Western Blotting

Western blot analysis of extracts from 293, NIH/3T3 and C6 cells, treated with λ phosphatase or TPA #4174 as indicated, using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb (upper), or p44/42 MAPK (Erk1/2) (137F5) Rabbit mAb #4695 (lower).

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded MDA-MB-468 xenograft using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb (left) or PTEN (138G6) Rabbit mAb #9559 (right). Note the presence of P-Akt staining in the PTEN deficient MDA-MB-468 cells.

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of TF-1 cells, untreated (blue) or GM-CSF treated (green), using Phospho-Stat5 (Tyr694) (D47E7) XP® Rabbit mAb.


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis using Phospho-EGF Receptor (Tyr1068) (D7A5) XP® Rabbit mAb on SignalSlide™ Phospho-EGF Receptor IHC Controls #8102 (paraffin-embedded KYSE450 cell pellets, untreated (left) or EGF-treated (right)).

IP

IP

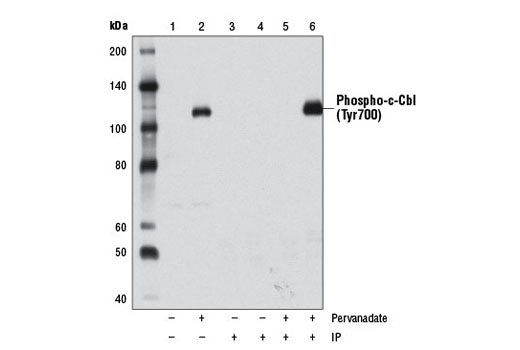

Immunoprecipitation (IP) of phosphorylated c-Cbl from Jurkat cell extracts, untreated (-) or treated with pervanadate (1 mM; +), using Phospho-c-Cbl (Tyr700) (D16D7) Rabbit mAb (lanes 4 and 6). Western blot detection was performed using the same antibody. Lanes 1 and 2 are 10% input. Lanes 3 and 5 are IPs performed with Rabbit (DA1E) mAb IgG XP® Isotype Control #3900.

IP

IP

Immunoprecipitation of phospho-PLCγ1 (Tyr783) from A-431 cell extracts stimulated with hEGF #8916 using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Phospho-PLCγ1 (Tyr783) (D6M9S) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using Phospho-PLCγ1 (Tyr783) (D6M9S) Rabbit mAb.


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human breast carcinoma comparing SignalStain® Antibody Diluent #8112 (left) to TBST/5% normal goat serum (right) using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb #4060.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded HCC827 xenograft, control (left) or λ phosphatase-treated (right), using Phospho-EGF Receptor (Tyr1068) (D7A5) XP® Rabbit mAb.


IF-IC

IF-IC

Confocal immunofluorescent analysis of A-431 cells, EGF-treated (left) or untreated (right), using Phospho-Stat5 (Tyr694) XP®(D47E7) Rabbit mAb (green) and Pan-Keratin (C11) Mouse mAb #4545 (red).

Specificity

Specificity

Western blot analysis of extracts from Jurkat cells, untreated (-) or treated with pervanadate (1 mM; +), using Phospho-c-Cbl (Tyr700) (D16D7) Rabbit mAb (left). The phospho-specificity of the antibody was verified by preincubating the antibody with c-Cbl (Tyr700) phosphopeptide (center) or with c-Cbl (Tyr700) nonphosphopeptide prior to incubation with the membrane (right).

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of NIH/3T3 cells, untreated (blue) or treated with recombinant mouse PDGF-BB (200 ng/ml, 15 min; green), using Phospho-PLCγ1 (Tyr783) (D6M9S) Rabbit mAb. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human lung carcinoma, untreated (left) or λ phosphatase-treated (right), using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb.

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of A549 cells, untreated (blue) or EGF-treated (green), using Phospho-EGF Receptor (Tyr1068) (D7A5) XP® Rabbit mAb compared to concentration matched XP® Rabbit (DA1E) mAb IgG Isotype Control #3900 (red).


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb on SignalSlide™ Phospho-p44/42 MAPK (Thr202/Tyr204) IHC Controls #8103 (paraffin-embedded NIH/3T3 cells, treated with U0126 #9903 (left) or TPA #4174 (right).

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb on SignalSlide® Phospho-Akt (Ser473) IHC Controls #8101 (paraffin-embedded LNCaP cells, untreated (left) or LY294002-treated (right)).

IF-IC

IF-IC

Confocal immunofluorescent analysis of HeLa cells, untreated (left) or EGF-treated (right), using Phospho-EGF Receptor (Tyr1068) (D7A5) XP® Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).


IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded human lung carcinoma using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb.

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of Jurkat cells, treated with U0126 (10 µM, 2 hrs; green) or treated with TPA #4174 (200 nM, 30 min; blue) using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded PTEN heterozygous mutant mouse endometrium using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb. (Tissue section courtesy of Dr. Sabina Signoretti, Brigham and Women's Hospital, Harvard Medical School, Boston, MA.)


IF-IC

IF-IC

Confocal immunofluorescent analysis of Drosophila egg chambers, untreated (top) or λ phosphatase-treated (bottom), using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370 (green) and S6 Ribosomal Protein (54D2) Mouse mAb #2317 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded U-87MG xenograft, untreated (left) or lambda phosphatase-treated (right), using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb.

IF-IC

IF-IC

Confocal immunofluorescent analysis of HT1080 cells, starved overnight then treated with U0126 #9903 (10 uM, 2 h; left) or PDBu (Phorbol 12,13-Dibutyrate) #12808 (100 nM, 15 m; right) using Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (D13.14.4E) XP® Rabbit mAb #4370 (green) and β-Actin (8H10D10) Mouse mAb #3700 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).


Flow Cytometry

Flow Cytometry

Flow cytometric analysis of Jurkat cells, untreated (green) or treated with LY294002 #9901, wortmannin #9951 and U0126 #9903 (blue), using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb compared to a nonspecific negative control antibody (red).

IF-IC

IF-IC

Confocal immunofluorescent analysis of C2C12 cells, LY294002-treated (left) or insulin-treated (right), using Phospho-Akt (Ser473) (D9E) XP® Rabbit mAb (green). Actin filaments have been labeled with Alexa Fluor® 555 phalloidin #8953 (red). Blue pseudocolor = DRAQ5®#4084 (fluorescent DNA dye).

バックグラウンド

The epidermal growth factor (EGF) receptor is a transmembrane tyrosine kinase that belongs to the HER/ErbB protein family. Ligand binding results in receptor dimerization, autophosphorylation, activation of downstream signaling, internalization, and lysosomal degradation (1,2). Phosphorylation of EGF receptor (EGFR) at Tyr845 in the kinase domain is implicated in stabilizing the activation loop, maintaining the active state enzyme, and providing a binding surface for substrate proteins (3,4). c-Src is involved in phosphorylation of EGFR at Tyr845 (5). The SH2 domain of PLCγ binds at phospho-Tyr992, resulting in activation of PLCγ-mediated downstream signaling (6). Phosphorylation of EGFR at Tyr1045 creates a major docking site for the adaptor protein c-Cbl, leading to receptor ubiquitination and degradation following EGFR activation (7,8). The GRB2 adaptor protein binds activated EGFR at phospho-Tyr1068 (9). A pair of phosphorylated EGFR residues (Tyr1148 and Tyr1173) provide a docking site for the Shc scaffold protein, with both sites involved in MAP kinase signaling activation (2). Phosphorylation of EGFR at specific serine and threonine residues attenuates EGFR kinase activity. EGFR carboxy-terminal residues Ser1046 and Ser1047 are phosphorylated by CaM kinase II; mutation of either of these serines results in upregulated EGFR tyrosine autophosphorylation (10).

使用例
製品をご使用いただいて研究を発表されましたら、ぜひお知らせください

関連製品
2179   c-Cbl (C49H8) Rabbit mAb
2822   PLCγ1 Antibody
3232   Gab1 Antibody
3432   Cytokine Receptor Common beta-Chain Antibody
4267   EGF Receptor (D38B1) XP® Rabbit mAb
4691   Akt (pan) (C67E7) Rabbit mAb
4695   p44/42 MAPK (Erk1/2) (137F5) Rabbit mAb
7074   Anti-rabbit IgG, HRP-linked Antibody
7727   Biotinylated Protein Ladder Detection Pack

DRAQ5 is a registered trademark of Biostatus Limited.
SignalStain is a trademark of Cell Signaling Technology, Inc.
XP is a registered trademark of Cell Signaling Technology, Inc.
Alexa Fluor is a registered trademark of Life Technologies Corporation.
LumiGLO is a registered trademark of Kirkegaard & Perry Laboratories.
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.

本製品は試験研究用です。
