#9962 Epitope Tag Antibody Sampler Kit

CSTコード 包装
希望納入価格 (円)
国内在庫 i
2019年3月20日11時40分 現在
ご登録代理店情報 i
カスタマー情報にご登録いただいた代理店を表示しています。
ご登録代理店の変更はこちら
#9962T1 Kit84,000
ログインすると国内在庫状況がご確認いただけます。

Epitope Tag 製品一覧

9962 の推奨プロトコール i

最適な結果を得るために:Cell Signaling Technology (CST) 社は、各製品の推奨プロトコールを使用することを強くお薦めいたします。
推奨プロトコールはCST社内試験の徹底的なバリデーションに基づいて作成されておりますので、正確かつ再現性の高い結果が得られます。

注:各製品に最適化されたプロトコールをリンクしています。


キット内容 容量 用途 種交差性 検出分子量 アイソタイプ
GST (91G1) Rabbit mAb #2625 20 µl WB, IP All Rabbit IgG
Myc-Tag (71D10) Rabbit mAb #2278 20 µl WB, IP, IF-IC, F Rabbit IgG
HA-Tag (C29F4) Rabbit mAb #3724 20 µl WB, IP, IHC-P, IF-IC, F, ChIP All Rabbit IgG
His-Tag (D3I1O) XP® Rabbit mAb #12698 20 µl WB, IP, IF-IC, F, ChIP All Rabbit IgG
DYKDDDDK Tag (9A3) Mouse mAb (Binds to same epitope as Sigma's Anti-FLAG® M2 Antibody) #8146 20 µl WB, IP, IHC-P, IF-IC, F Mouse IgG1
Anti-rabbit IgG, HRP-linked Antibody #7074 100 µl WB Goat
Anti-mouse IgG, HRP-linked Antibody #7076 100 µl WB Horse

Applications Key: W=Western Blotting, IP=Immunoprecipitation, IF-IC=Immunofluorescence (Immunocytochemistry), F=Flow Cytometry, IHC-P=Immunohistochemistry (Paraffin), ChIP=Chromatin IP
Reactivity Key: All=All Species Expected

貯法
-20℃
社内データ

Western Blotting

Western Blotting

After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.

Western Blotting

Western Blotting

Western blot analysis of extracts from COS-7 cells untransfected (-) and transfected cells overexpressing GST-Bad (+), using GST (91G1) Rabbit mAb (left) and Bad Antibody #9292 (right).

Western Blotting

Western Blotting

Western blot analysis of extracts from untransfected control cells (-) and transfected cells overexpressing Myc-Bcl-2 (+), using Bcl-2 Antibody #2872 (left) and Myc-Tag (71D10) Rabbit mAb (right).


Western Blotting

Western Blotting

Western blot analysis of extracts from HeLa cells, untransfected or transfected with either HA-FoxO4 or HA-Akt3, using HA-Tag (C29F4) Rabbit mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from 293T cells, untransfected or transfected with either DYKDDDDK-tagged FoxG1, NPAS4, or Tyrosine Hydroxylase (TH), using DYKDDDDK Tag (9A3) Mouse mAb.

Western Blotting

Western Blotting

Western blot analysis of extracts from 293T cells, untransfected or transfected with 6xHis-Tag fusion protein 1 or 6xHis-Tag fusion protein 2, using His-Tag (D3I1O) XP® Rabbit mAb.


Flow Cytometry

Flow Cytometry

Flow cytometric analysis of COS cells, untreated (blue) or Myc transfected (green), using Myc-Tag (71D10) Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded COS cells, untransfected (right) or HA-Tag transfected (left), using HA-Tag (C29F4) Rabbit mAb.

IHC-P (paraffin)

IHC-P (paraffin)

Immunohistochemical analysis of paraffin-embedded 293T cell pellets, control (left) or ROS-DYKDDDDK Tag transfected (right), using DYKDDDDK Tag (9A3) Mouse mAb.


IP

IP

Immunoprecipitation of His-Tag protein from transfected 293T cells using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or His-Tag (D3I1O) XP® Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using His-Tag (D3I1O) XP® Rabbit mAb.

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of HeLa cells, untransfected (blue) or transfected with HA-FoxO4 (green), using HA-Tag (C29F4) Rabbit mAb #3724.

Flow Cytometry

Flow Cytometry

Flow cytometric analysis of Cos cells, untreated (blue) or transfected with a DYKDDDDK-tagged IRF3 contruct (green) using DYKDDDDK Tag (9A3) Mouse mAb.


Flow Cytometry

Flow Cytometry

Flow cytometric analysis of 293T cells, untransfected (blue) or transfected with a His-myc-Akt plasmid (green), using His-Tag (D3I1O) XP® Rabbit mAb. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 647 Conjugate) #4414 was used as a secondary antibody.

IF-IC

IF-IC

Confocal immunofluorescent analysis of 293 cells stably expressing Myc-tagged ADORA2A (left) versus wild-type 293 cells (right) using Myc-Tag (71D10) Rabbit mAb (green). Blue = DAPI #4083 (fluorescent DNA dye).

IF-IC

IF-IC

Confocal immunofluorescent analysis of COS cells, transfected with an HA-tagged protein (left) or mock-transfected (right), using HA-Tag (C29F4) Rabbit mAb (green). Actin filaments have been labeled using DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® (fluorescent DNA dye).


IF-IC

IF-IC

Confocal immunofluorescent analysis of HeLa cells transfected with a DYKDDDDK-tagged IRF3 construct using DYKDDDDK Tag (9A3) Mouse mAb (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).

IF-IC

IF-IC

Confocal immunofluorescent analysis of 293T cells transfected with a His-Tagged protein using His-Tag (D3I1O) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor= DRAQ5® #4084 (fluorescent DNA dye).

Chromatin IP

Chromatin IP

293T cells were either untransfected (left panel) or transfected with an HA-tagged human CBP construct (right panel), then treated with Forskolin #3828 (30 µM) . Chromatin immunoprecipitations were performed with cross-linked chromatin from cells and HA-Tag (C29F4) Rabbit mAb, CBP (D9B6) Rabbit mAb, or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using human ALS2 exon 1 primers, SimpleChIP® Human NR4A3 Promoter Primers #4829, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.


Chromatin IP

Chromatin IP

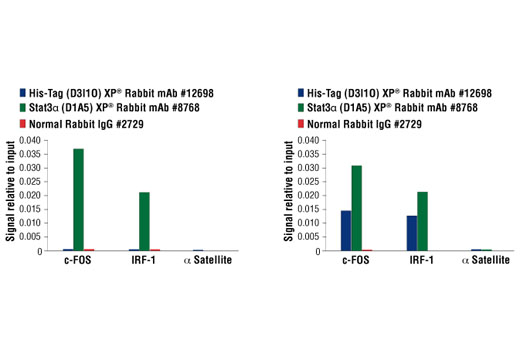

293T cells were either untransfected (left panel) or transfected with an His-tagged human Stat3 construct (right panel), then treated with Human Interleukin-6 (hIL-6) #8904 (100 ng/ml, 30 min). Chromatin immunoprecipitations were performed with cross-linked chromatin from cells and His-Tag (D3I1O) XP® Rabbit mAb, Stat3α (D1A5) XP® Rabbit mAb #8768, or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human c-Fos Promoter Primers #4663, human IRF-1 promoter primers, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.

バックグラウンド

Epitope tags are useful for the labeling and detection of proteins using immunoblotting, immunoprecipitation, and immunostaining techniques. Because of their small size, they are unlikely to affect the tagged protein’s biochemical properties.

Several different epitope tags are now commonly utilized and readily available. For instance, a variety of plasmids contain DNA that encodes an amino-terminal tag consisting of six histidine (6xHis) residues followed by an extended multiple cloning site. The 6xHis tag on the expressed recombinant proteins allows for efficient coupling to Ni2+ affinity resins and purification by single step chromatography (1). As is the case with other protein tag systems (2), this polyhistidine tag can often be cleaved at sites recognized by proteases such as thrombin and enterokinases to isolate the protein of interest (1). Glutathione S-transferase (GST) is another widely used fusion partner, since it provides both an easily detectable Tag and a simple purification process with little effect on the biological function of the protein of interest. Numerous vectors containing GST-Tag have been developed for both prokaryotic and eukaryotic systems over the past decade (3-5). The HA tag, derived from an epitope of the influenza hemagglutinin protein, has also been extensively used as a general epitope tag in expression vectors (6), while the Myc epitope tag is routinely used to detect expression of recombinant proteins in bacteria, yeast, insect and mammalian cell systems (7). Finally, the DYKDDDDK peptide has been used extensively as a general epitope tag in expression vectors and consists of only eight amino acids. This peptide can be expressed and detected with the protein of interested as an amino-terminal or carboxy-terminal fusion (8).

使用例
製品をご使用いただいて研究を発表されましたら、ぜひお知らせください

関連製品
12630   SignalFire™ Plus ECL Reagent
12757   SignalFire™ Elite ECL Reagent
2278   Myc-Tag (71D10) Rabbit mAb
2625   GST (91G1) Rabbit mAb
3724   HA-Tag (C29F4) Rabbit mAb
6883   SignalFire™ ECL Reagent
7074   Anti-rabbit IgG, HRP-linked Antibody
7076   Anti-mouse IgG, HRP-linked Antibody
8146   DYKDDDDK Tag (9A3) Mouse mAb (Binds to same epitope as Sigma's Anti-FLAG® M2 Antibody)
